Steel Cord Conveyor Belt

Application:
- Used in coal, ore, port, metallurgical, power and chemical industries, suitable for long distance and heavy load transportation of materials.
- Standards offered: GB/T9770, DIN22131, EN ISO 15236, SANS1366 and AS1333.
- Cover Compounds: General, Fire-resistant, Cold-resistant, Abrasion-resistant, Heat-resistant and Chemical-resistant.

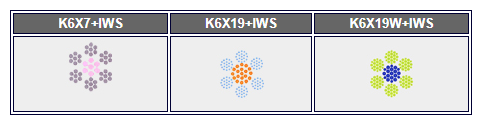

Steel cord structure:

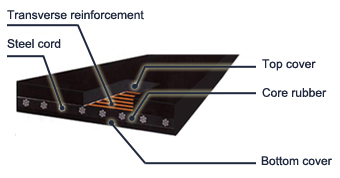

Belt Structures:

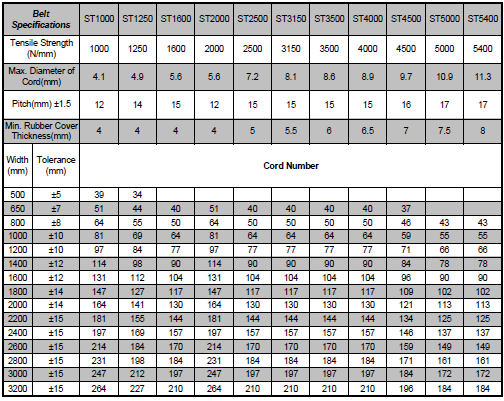

Referenced Belt Specifications

ST Belt Splice

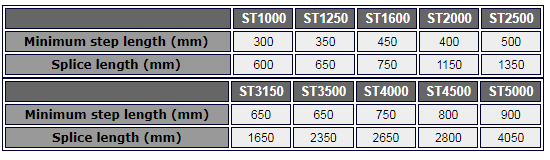

Splice dimensions as per DIN 22131

Splice Configurations

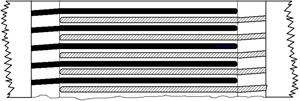

One-step splice (up to ST 2000)

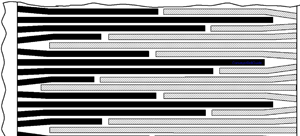

Two-step splice (ST2500 to ST3150)

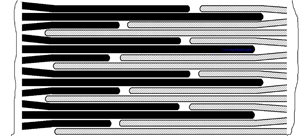

Three-step splice (ST3500 to ST4500)

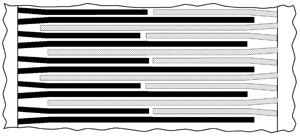

Four-step splice (ST5000 to ST7500)
